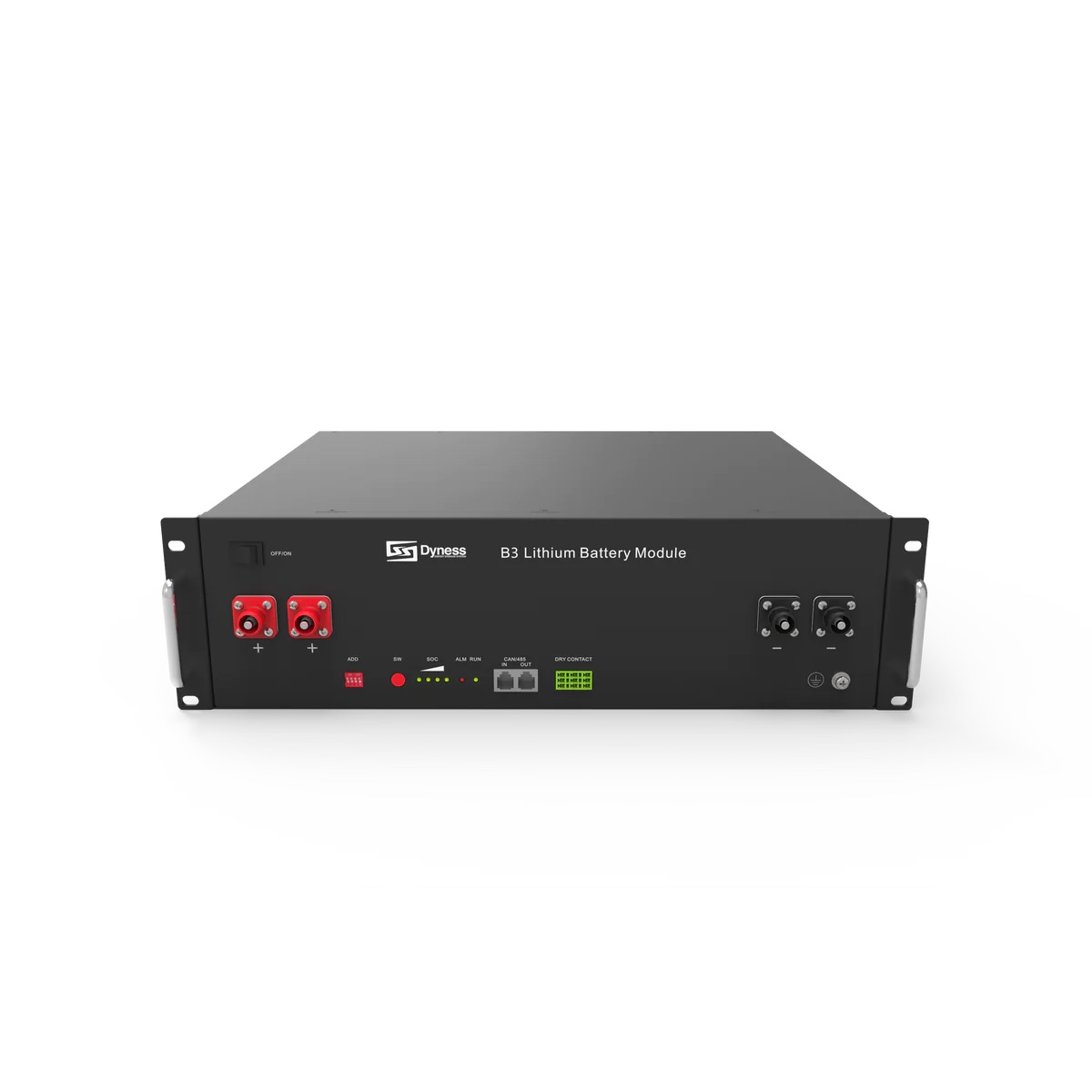

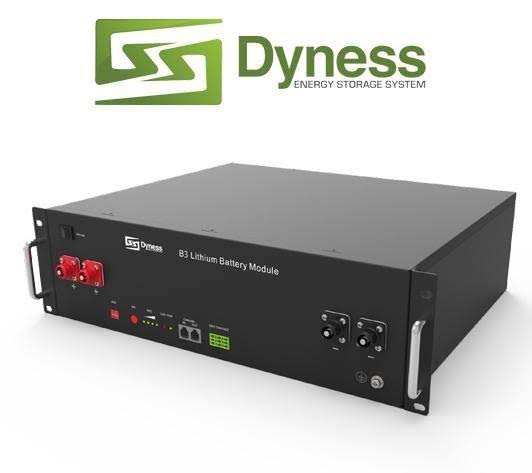

Dyness B3 Lithium Battery Module

Description

General Data
• Battery Type: LiFePO4
• Nominal Battery Energy: 3.6Kwh
• Nominal Capacity: 75Ah
• Nominal Voltage: 48V
• Maximum Continuous Discharge Current: 50A
• Maximum Continuous Charge Current: 50A
• Charging Cut-Off Voltage: 54V
• Discharging End-Off Voltage: 40.5V
• Recommended C Rate: 0.5C
• Charging Temp Range: 0°C to 50°C
• Discharging Temp Range: -20°C to 50°C
• Protection Level: IP20
• Calendar Life: 6000 Cycles
• Communication: CANBUS / RS485
• Configuration: Up to 144KWH Total Energy, 40 Modules Parallel Maximum
• Certification: TUV/CE

(Transport not included)
